Rideable Bicycle Replicas

The "Superior" Hiwheel

Our top of the line bike is based on the Gormully and Jeffery American Challenge/Ideal. It incorporates steel castings copied directly from an original G&J we have here at RBR.

Superior HiwheelThe head, neck, bar clamps and spade grips from the original G&J bikes were copied faithfully and have been used to make a bike very close in appearance to the original. The handlebars can be made with a cowhorn bend, straight or dropped at the ends to the width specified by the rider. Handle grips are rubber, in spade configuration, adjustable to angle and comfortable to hold. The bike comes with an oil lamp and a bell as well as a sprung leather hammock style saddle, adjustable rear step and pantguard. Pedals are antique style rubber block and the cranks are our adjustable 3 hole cottered type, finish is a black powder coating or nickel plate (special color or plating additional). Red or black wheel rubber optional. Step, bars and clamps, grips and springs are nickel plated.

The front wheel is one of our own make, 38", 48", 52", 54" or 56" tall, 60 stainless steel spokes tangentially laced with a nickeled rim, solid rubber tire, the rear wheel is 16" and fully adjustable with a solid rubber tire. Main wheel bearings are sealed precision and rear bearings are enclosed. Frame is steel tube with an .095 wall and the forks are .065 wall, all parts mig welded.



Sizes offered are 38", 48", 52", 54", and 56" sized to the rider by inseam. Contact us to determine what size you should ride. Please also see our Size Recommendations & Assembled Dimensions Custom sizes can be made at an additional cost.



Head and neck detail with lamp

Specifications:
38", 48", 52", 54", or 56"
Stainless front spokes, nickeled rim and hub
Powder-coated frame & forks
Sprung leather hammock saddle
English rubber grips
Rubber block pedals
Adjustable 3 hole cranks
Solid rubber tires, red or black.
Handle bar - Mustache Style
Spade type grip handle, or Wood pear shape

Functional kerosene oil lamp
Bowl bell
4 wheel sizes standard
Original G&J style castings -
head, neck, bar clamps and spade handles
Pantguard
Adjustable rear step
Adjustable 16-inch Phil Wood rear wheel
Weight of 52" bike approx. 38 pounds

Price - (38", 48" or 52") $2200.00
Price - (54" or 56" ) $2400.00
Add $300 for nickel, brass, copper, or chrome plating,
$100 for powder color other than gloss black

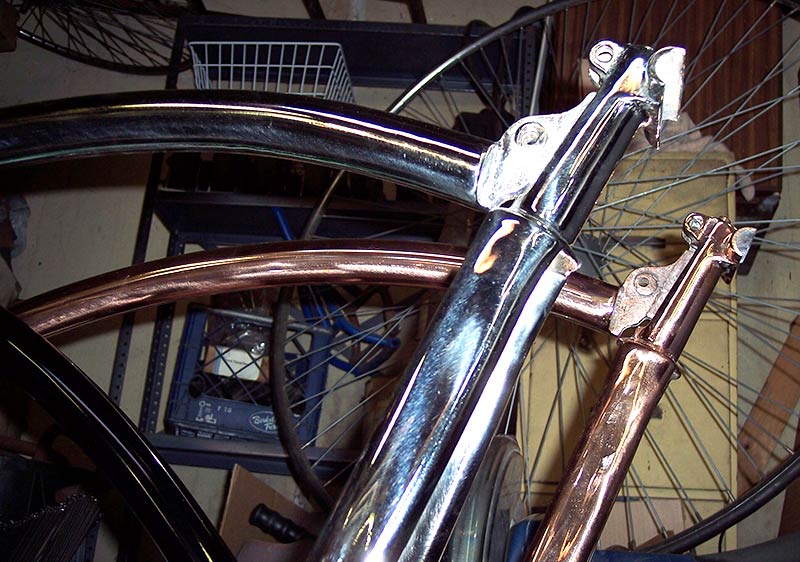

Detail of the head & neck, bar clamps, lamp bracket, and head adjuster.

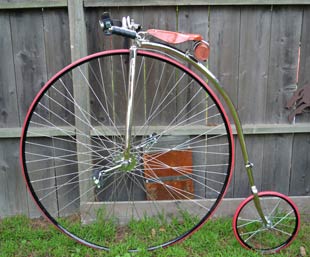

52" Nickle plated Superior.


Side by side siblings, Silver and Black.

Head detail.


Handle Bar and Saddle Detail.

Saddle name badge


Head and Neck detail

Step and Spine


.Deluxe Saddle

.Deluxe Saddle


Pantguard

Detail of hub, crank & lower fork.

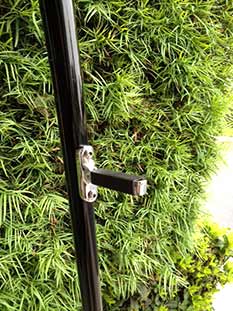

Adjustable rear step and lower frame detail with tapered tube.





Superior














To Place an Order:
call: (510) 769-0980 or send e-mail to: info@hiwheel.com
